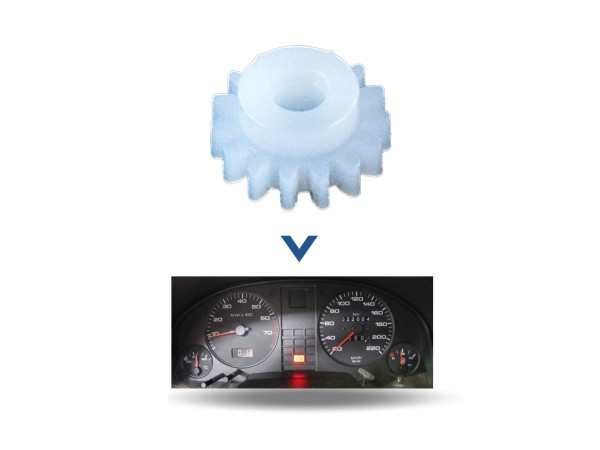

E15 Tacho gear for Audi 80 combination instrument counting repair

(11)

E15 Tacho gear for Audi 80 combination instrument counting repair

20.03€* 23.03€*

Prices incl. VAT plus shipping costs

Available immediately

This item will be shipped the next business day!

Order number: 2100
Manufacturer: partworks

E15 Tacho gear for Audi 80 combination instrument counting repair Excellent processing... more

Close menu

E15 Tacho gear for Audi 80 combination instrument counting repair

Excellent processing quality

Description:
If the mileage/kilometer meter has failed on your vehicle, then this gear is usually the cause. To avoid double assembly work, we recommend the pair of exchange of the E15 and the disc gear. You can find corresponding offers in the shop.
With the E15 a 12-k, 15-k, 16 k or 17-k, the disc gear can simply be looking for the names in the shop.

Mass:
Diameter E15 = 6.90mm (15 teeth)
for comparison:
Diameter E20 = 8.60mm (20 teeth)

A notice:
Either an E20 or an E15 can be installed in the Audi 80. You can find a corresponding offer in our shop.

Important:
The assignment between the engine type/gearbox type/year of construction/model to the gearwheel type is unfortunately so complex that only counting the teeth gives certainty. Therefore, please count your teeth before buying.

Service:
We have over 100 gear variants in our range and can deliver the right gears if necessary!

+ all alternative sizes constantly stored
+ Fast exchange service for size deviation

For the repair, we will send you an illustrated repair instruction (German/English) by email.

Quality:
Our gears are complex and faithful in the injection molding process and no 3D printing own buildings. We work with a manufacturer who specializes in the production of plastic tooth wheels and is the market leader worldwide with its repair solutions.
The so-called evolvent tooth geometry is maintained, only in this way is a non-frictional sliding of the tooth flanks between the gear pairs.
As a material, we use the thermoplastic plastic Celron with graphite additives. These ensure low friction and the wear -free operation.

If you disassemble the speedometer in advance, please note that the shaft of the speedometer needle is very sensitive. Grab the speedometer needle in the middle and turn clockwise. Pull lightly. Friction is everything the needle keeps on the wave.

Partworks GmbH is a German company that specializes in reverse engineering and sales of spare parts for Porsche. Special value is placed on high quality and excellent service. More than 130,000 auto fans are already satisfied customers worldwide at the company from Paderborn. As a specialist company for classic car spare parts, we are aware of our customers' quality requirements. Therefore, with post -developments, you can be sure that the requirements are very precisely based on the original and sometimes even exceed them. With our own engineering department and internal testing, we can ensure the reliability of our products. Last but not least, our DIN-ISO 9001-certified quality management confirms the thoroughness of our work. When you see the manufacturer's species partworks, there is either an in-house development or an article from the first server (OE quality). The first manufacturers are the manufacturers who have delivered the original product to the vehicle manufacturer but cannot be active under their own brand outdoors.

Reference numbers:
8A0919033CA,   8A0.919.033.CA,   8A0 919 033 CA
893919067
895919033AQ,   895.919.033.AQ,   895 919 033 AQ
110008561005
110008562001
8A0919033CD,   8A0.919.033.CD,   8A0 919 033 CD
8A1919214F
88471067

Scope of delivery:
1 gear

Suitable for:
Audi 80 (B3 / B4)
Either an E20 or an E15 can be installed in the Audi 80.
You can find a corresponding offer in our shop.
The assignment between the engine type/gearbox type/year of construction/model to the gear wheel type is unfortunately so complex

Product Safety Information:
Manufacturer:
partworks GmbH
Otto-Stadler-Str. 9c
33100 Paderborn - DE
Email: info@partworks.de
Website: https://partworks.de/

Related links to "E15 Tacho gear for Audi 80 combination instrument counting repair"

Close menu

Brand	Model	Type	Platform	Year of manufacture	Motor	Restrictions
Audi	80	1,7	--	1966/09-1968/08	1695 ccm, 59 KW, 80 PS
Audi	80	1,3	80, 82, B1	1972/05-1978/07	1297 ccm, 44 KW, 60 PS
Audi	80	1,3	80, 82, B1	1972/05-1978/07	1297 ccm, 40 KW, 55 PS
Audi	80	1,6	80, 82, B1	1975/09-1978/07	1588 ccm, 63 KW, 85 PS
Audi	80	1,5	80, 82, B1	1972/05-1975/08	1471 ccm, 55 KW, 75 PS
Audi	80	1.6 GT	80, 82, B1	1973/09-1976/07	1584 ccm, 74 KW, 100 PS
Audi	80	1,5	80, 82, B1	1972/05-1976/07	1471 ccm, 63 KW, 85 PS
Audi	80	1.6 GTE	80, 82, B1	1976/01-1978/07	1588 ccm, 81 KW, 110 PS
Audi	80	1,6	80, 82, B1	1975/09-1978/07	1588 ccm, 55 KW, 75 PS
Audi	80	1,8	81, 85, B2	1983/01-1986/08	1781 ccm, 66 KW, 90 PS
Audi	80	1.8 CC quattro	81, 85, B2	1985/08-1986/08	1781 ccm, 68 KW, 93 PS
Audi	80	2.2 quattro	81, 85, B2	1982/08-1984/07	2144 ccm, 96 KW, 131 PS
Audi	80	1,3	81, 85, B2	1978/09-1986/07	1297 ccm, 44 KW, 60 PS
Audi	80	1.8 GTE quattro	81, 85, B2	1985/03-1986/08	1781 ccm, 81 KW, 110 PS
Audi	80	2,2	81, 85, B2	1980/10-1983/07	2144 ccm, 85 KW, 115 PS
Audi	80	1.8 GTE	81, 85, B2	1984/10-1986/08	1781 ccm, 82 KW, 112 PS
Audi	80	1,6	81, 85, B2	1978/08-1986/07	1588 ccm, 55 KW, 75 PS
Audi	80	1,6	81, 85, B2	1986/02-1986/07	1595 ccm, 54 KW, 73 PS
Audi	80	2	81, 85, B2	1983/10-1984/09	1994 ccm, 85 KW, 115 PS
Audi	80	2.0 quattro	81, 85, B2	1983/10-1984/09	1994 ccm, 85 KW, 115 PS
Audi	80	1.6 D	81, 85, B2	1980/08-1986/08	1588 ccm, 40 KW, 54 PS
Audi	80	1,6	81, 85, B2	1978/08-1986/07	1595 ccm, 55 KW, 75 PS
Audi	80	1,6	81, 85, B2	1978/08-1981/07	1588 ccm, 51 KW, 70 PS
Audi	80	2.2 quattro	81, 85, B2	1982/08-1984/07	2144 ccm, 100 KW, 136 PS
Audi	80	1.6 TD	81, 85, B2	1981/08-1986/05	1588 ccm, 51 KW, 70 PS
Audi	80	1,6	81, 85, B2	1978/08-1983/02	1588 ccm, 63 KW, 85 PS
Audi	80	1,3	81, 85, B2	1978/09-1981/07	1272 ccm, 44 KW, 60 PS
Audi	80	1.9 CD-5S	81, 85, B2	1981/09-1983/07	1921 ccm, 85 KW, 115 PS
Audi	80	1.8 CC quattro	81, 85, B2	1984/08-1986/08	1781 ccm, 66 KW, 90 PS
Audi	80	1.6 GLE	81, 85, B2	1978/08-1982/07	1588 ccm, 81 KW, 110 PS
Audi	80	2.2 quattro	81, 85, B2	1982/08-1984/07	2226 ccm, 100 KW, 136 PS
Audi	80	1,8	81, 85, B2	1983/08-1986/08	1781 ccm, 68 KW, 93 PS
Audi	80	1.8 GTE quattro	81, 85, B2	1984/08-1986/08	1781 ccm, 82 KW, 112 PS
Audi	80	1,8	81, 85, B2	1986/02-1986/07	1781 ccm, 65 KW, 88 PS
Audi	80	1.8 GTE	81, 85, B2	1985/08-1986/07	1781 ccm, 81 KW, 110 PS
Audi	80	1,3	81, 85, B2	1978/09-1981/07	1272 ccm, 40 KW, 55 PS
Audi	80	1.8 E quattro	89, 89Q, 8A, B3	1986/09-1991/08	1781 ccm, 82 KW, 112 PS
Audi	80	1,6	89, 89Q, 8A, B3	1986/09-1991/08	1595 ccm, 55 KW, 75 PS
Audi	80	2.0 E quattro	89, 89Q, 8A, B3	1988/08-1990/09	1984 ccm, 83 KW, 113 PS
Audi	80	1.9 D	89, 89Q, 8A, B3	1989/08-1991/08	1896 ccm, 50 KW, 68 PS
Audi	80	2.3 quattro	89, 89Q, 8A, B3	1987/10-1989/07	2309 ccm, 98 KW, 133 PS
Audi	80	1,8	89, 89Q, 8A, B3	1986/10-1990/01	1781 ccm, 55 KW, 75 PS
Audi	80	2.0 quattro	89, 89Q, 8A, B3	1990/10-1991/08	1984 ccm, 85 KW, 115 PS
Audi	80	1,6	89, 89Q, 8A, B3	1987/08-1991/09	1595 ccm, 51 KW, 70 PS
Audi	80	1.8 E	89, 89Q, 8A, B3	1986/06-1991/08	1781 ccm, 82 KW, 112 PS
Audi	80	1.8 S	89, 89Q, 8A, B3	1986/08-1990/01	1781 ccm, 65 KW, 88 PS
Audi	80	2.0 E 16V quattro	89, 89Q, 8A, B3	1990/03-1991/08	1984 ccm, 101 KW, 137 PS
Audi	80	2.0 quattro	89, 89Q, 8A, B3	1988/08-1990/07	1984 ccm, 82 KW, 112 PS
Audi	80	2.0 E 16V	89, 89Q, 8A, B3	1990/03-1991/09	1984 ccm, 101 KW, 137 PS
Audi	80	1,6	89, 89Q, 8A, B3	1990/08-1991/10	1595 ccm, 75 KW, 102 PS
Audi	80	1,8	89, 89Q, 8A, B3	1986/09-1988/07	1847 ccm, 83 KW, 113 PS
Audi	80	1.8 S	89, 89Q, 8A, B3	1986/09-1991/10	1781 ccm, 66 KW, 90 PS
Audi	80	1.8 S quattro	89, 89Q, 8A, B3	1986/09-1990/07	1781 ccm, 65 KW, 88 PS
Audi	80	2.0 E	89, 89Q, 8A, B3	1988/08-1990/10	1984 ccm, 83 KW, 113 PS
Audi	80	1.8 S quattro	89, 89Q, 8A, B3	1986/09-1991/09	1781 ccm, 66 KW, 90 PS
Audi	80	1.6 D	89, 89Q, 8A, B3	1987/02-1989/07	1588 ccm, 40 KW, 54 PS
Audi	80	2	89, 89Q, 8A, B3	1990/10-1991/08	1984 ccm, 82 KW, 112 PS
Audi	80	1.8 quattro	89, 89Q, 8A, B3	1986/09-1990/08	1847 ccm, 83 KW, 113 PS
Audi	80	1.6 TD	89, 89Q, 8A, B3	1986/09-1991/08	1588 ccm, 59 KW, 80 PS
Audi	80	1,4	89, 89Q, 8A, B3	1986/08-1988/07	1400 ccm, 48 KW, 65 PS
Audi	80	2,8	8C, B4	1991/09-1994/12	2771 ccm, 128 KW, 174 PS
Audi	80	2	8C, B4	1991/09-1994/12	1984 ccm, 66 KW, 90 PS
Audi	80	2.0 E 16V quattro	8C, B4	1992/04-1994/12	1984 ccm, 103 KW, 140 PS
Audi	80	2.0 E	8C, B4	1991/09-1994/12	1984 ccm, 85 KW, 115 PS
Audi	80	2.0 E quattro	8C, B4	1991/09-1994/12	1984 ccm, 85 KW, 115 PS
Audi	80	2.0 E 16V	8C, B4	1992/08-1994/12	1984 ccm, 103 KW, 140 PS
Audi	80	1.9 TD	8C, B4	1991/09-1994/12	1896 ccm, 55 KW, 75 PS
Audi	80	S2 quattro	8C, B4	1993/02-1994/12	2226 ccm, 169 KW, 230 PS
Audi	80	1.9 TDI	8C, B4	1991/09-1994/12	1896 ccm, 66 KW, 90 PS
Audi	80	2.3 E quattro	8C, B4	1991/09-1994/12	2309 ccm, 98 KW, 133 PS
Audi	80	2.3 E	8C, B4	1991/09-1994/12	2309 ccm, 98 KW, 133 PS
Audi	80	1,6	8C, B4	1991/09-1994/12	1595 ccm, 52 KW, 71 PS
Audi	80	2.6 quattro	8C, B4	1992/06-1994/12	2598 ccm, 110 KW, 150 PS
Audi	80	2,6	8C, B4	1992/07-1994/12	2598 ccm, 110 KW, 150 PS
Audi	80	1.6e	8C, B4	1993/06-1994/12	1595 ccm, 74 KW, 101 PS
Audi	80	2.8 quattro	8C, B4	1991/09-1994/12	2771 ccm, 128 KW, 174 PS
Audi	80 Variant	1,7	--	1966/09-1968/08	1695 ccm, 59 KW, 80 PS
Audi	80 Avant	2.6 quattro	8C, B4	1992/07-1995/07	2598 ccm, 110 KW, 150 PS
Audi	80 Avant	2	8C, B4	1992/07-1996/01	1984 ccm, 66 KW, 90 PS
Audi	80 Avant	2.8 quattro	8C, B4	1992/08-1995/07	2771 ccm, 128 KW, 174 PS
Audi	80 Avant	2.0 E	8C, B4	1992/07-1996/01	1984 ccm, 85 KW, 115 PS
Audi	80 Avant	2.0 E 16V	8C, B4	1993/02-1996/01	1984 ccm, 103 KW, 140 PS
Audi	80 Avant	2,8	8C, B4	1991/09-1996/01	2771 ccm, 128 KW, 174 PS
Audi	80 Avant	2.3 E quattro	8C, B4	1991/09-1994/11	2309 ccm, 98 KW, 133 PS
Audi	80 Avant	2.3 E	8C, B4	1992/07-1996/01	2309 ccm, 98 KW, 133 PS
Audi	80 Avant	1.9 TD	8C, B4	1991/09-1994/12	1896 ccm, 55 KW, 75 PS
Audi	80 Avant	1.9 TDI	8C, B4	1992/07-1996/01	1896 ccm, 66 KW, 90 PS
Audi	80 Avant	RS2 quattro	8C, B4	1994/03-1995/05	2226 ccm, 232 KW, 315 PS
Audi	80 Avant	2,6	8C, B4	1992/07-1996/01	2598 ccm, 110 KW, 150 PS
Audi	80 Avant	1.6e	8C, B4	1993/06-1996/01	1595 ccm, 74 KW, 101 PS
Audi	80 Avant	2.0 E 16V quattro	8C, B4	1992/12-1995/07	1984 ccm, 103 KW, 140 PS
Audi	80 Avant	S2 quattro	8C, B4	1993/02-1995/07	2226 ccm, 169 KW, 230 PS
Audi	80 Avant	2.0 quattro	8C, B4	1993/11-1996/01	1984 ccm, 79 KW, 107 PS
