Tacho gears for Audi 80 B4 combination instrument Tacho repair E15 + 16-K set

Tacho gears for Audi 80 B4 combination instrument Tacho repair E15 + 16-K set

Description:

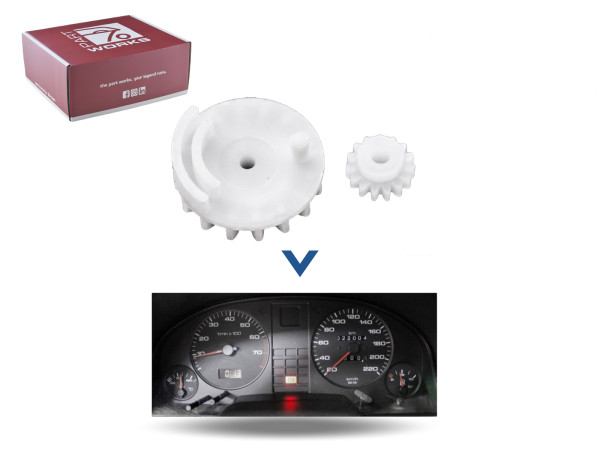

If the mileage / kilometer meter has failed on your vehicle, then one or both of these gears are usually the cause. To avoid double assembly work, we recommend replacing these two gears. Illustration / label only exemplary! Others are planned isolated. For this rare case, we offer a free and quick exchange of the disc tooth wheel. The assignment between the engine type/gearbox type/year of construction/model to the gearwheel type is unfortunately so complex that only counting the teeth provides 100% certainty.

Mass:
Diameter E15 = 6.90mm (15 teeth)
Diameter 16 k = 15.4mm (16 teeth)
Also occurring alternative disc tooth wheels: 15-K (most frequently! See also another offer), 12-k or 17-K

Service:
We have over 100 gear variants in our range and can deliver the right gears if necessary!

+ Daily shipping
+ Repair instructions (s)
+ All alternative sizes constantly stored
+ Purchase with invoice and VAT proven.

For the repair, we can send you an illustrated repair instructions specifically for the Audi 80-Achos. Simply write to us by email after purchase.

Quality:
Our gears are elaborate and faithful to the injection molding process and no 3D printing in-house buildings. We work with a manufacturer who specializes in the production of plastic tooth bikes and is the market leader worldwide with its repair solutions.
The so-called evolvent tooth geometry is maintained, only in this way is a non-frictional sliding of the tooth flanks between the gear pairs.
As a material, we use the thermoplastic plastic Celron with graphite additives. These ensure low friction and the wear -free operation.

If you disassemble the speedometer in advance, please note that the shaft of the speedometer needle is very sensitive. Grab the speedometer needle in the middle and turn clockwise. Pull lightly. Friction is everything the needle keeps on the wave.

Partworks GmbH is a German company that specializes in reverse engineering and sales of spare parts for Porsche. Special value is placed on high quality and excellent service. More than 130,000 auto fans are already satisfied customers worldwide at the company from Paderborn. As a specialist company for classic car spare parts, we are aware of our customers' quality requirements. Therefore, with post -developments, you can be sure that the requirements are very precisely based on the original and sometimes even exceed them. With our own engineering department and internal testing, we can ensure the reliability of our products. Last but not least, our DIN-ISO 9001-certified quality management confirms the thoroughness of our work. When you see the manufacturer's species partworks, there is either an in-house development or an article from the first server (OE quality). The first manufacturers are the manufacturers who have delivered the original product to the vehicle manufacturer but cannot be active under their own brand outdoors.

Reference numbers:
8A0919033CA,   8A0.919.033.CA,   8A0 919 033 CA
893919067
895919033AQ,   895.919.033.AQ,   895 919 033 AQ
110008561005
110008562001
8A0919033CD,   8A0.919.033.CD,   8A0 919 033 CD
8A1919214F
88471067


Scope of delivery:
Accordingly illustration

Suitable for:
Audi 80 (B3 / B4)
Others are planned isolated. For this rare case, we offer a free and quick exchange of the disc tooth wheel.
The assignment between the engine type/gearbox type/year of construction/model to the gear wheel type is unfortunately so complex
that only the counting of the teeth provides 100% certainty.
